TEKBOX TBAS4 RF Attenuator Set

£141.00 (£169.20 inc. VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBAS4 Categories: , , , , Brand:

Description

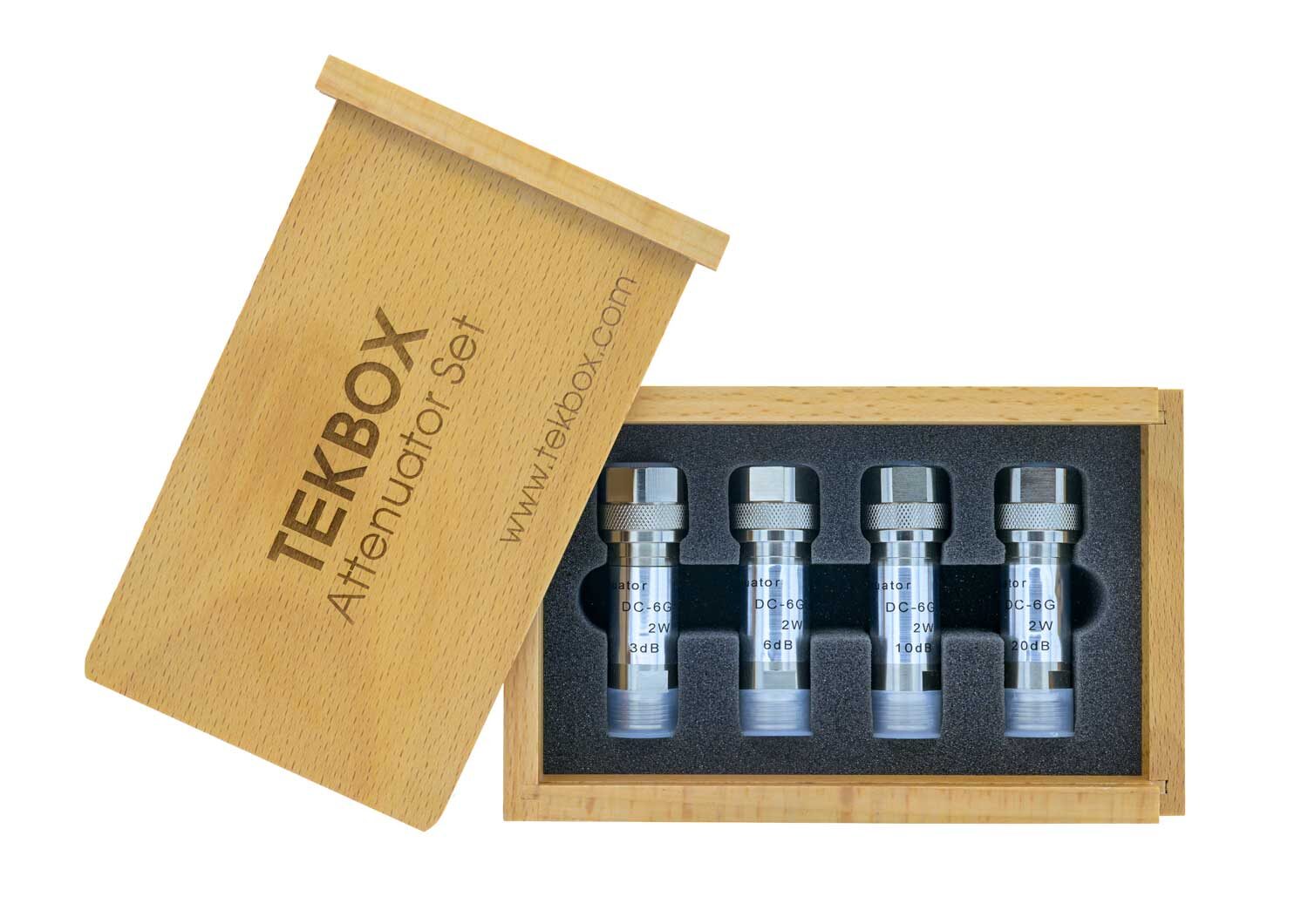

The TBAS4 RF attenuator set consists of 3dB, 6dB, 10dB and 20dB, 6 GHz/2W N-attenuators in a beech wood box.

Specifications

Parameter Value
Frequency range DC – 6GHz
VSWR; 3, 6, 10, 20 dB < 1.2
Tolerance; 3, 6, 10, 20 dB <+/- 0.3 dB
Power rating 2W @ -55 to 40°C; up to 70°C with 50% power de-rating
Connectors N-male / N-female; bidirectional
Dimensions 150mm x 95mm x 45mm
Weight 490g

Documentation

Documents: Attenuator Sets TBAS1 Manual TBAS2 Manual TBAS3 Manual TBAS4 Manual Documents: High-Pass filters TBFL1 Manual TBHPF1-150kHz B Manual TBHPF1-9kHz B Manual TBHPF1 500kHz Manual TBHPF2-150kHz Manual TBHPF3-150kHz Manual
Specifications
Tolerance 3, 6, 10 dB +/- 0.5 dB
20 dB +/- 0.8 dB
Frequency range DC-3GHz, VSWR < 1.3
Power rating 10W @ -55 to 40°C; up to 70°C with 50% power de-rating
Connectors N-male / N-female; bidirectional
Dimensions 150mm x 95mm x 45mm
Weight 505g
