Siglent SDP6150A High Voltage Differential Probe

£974.00 (£1168.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDP6150A Categories: , , Tags: , Brand:

Description

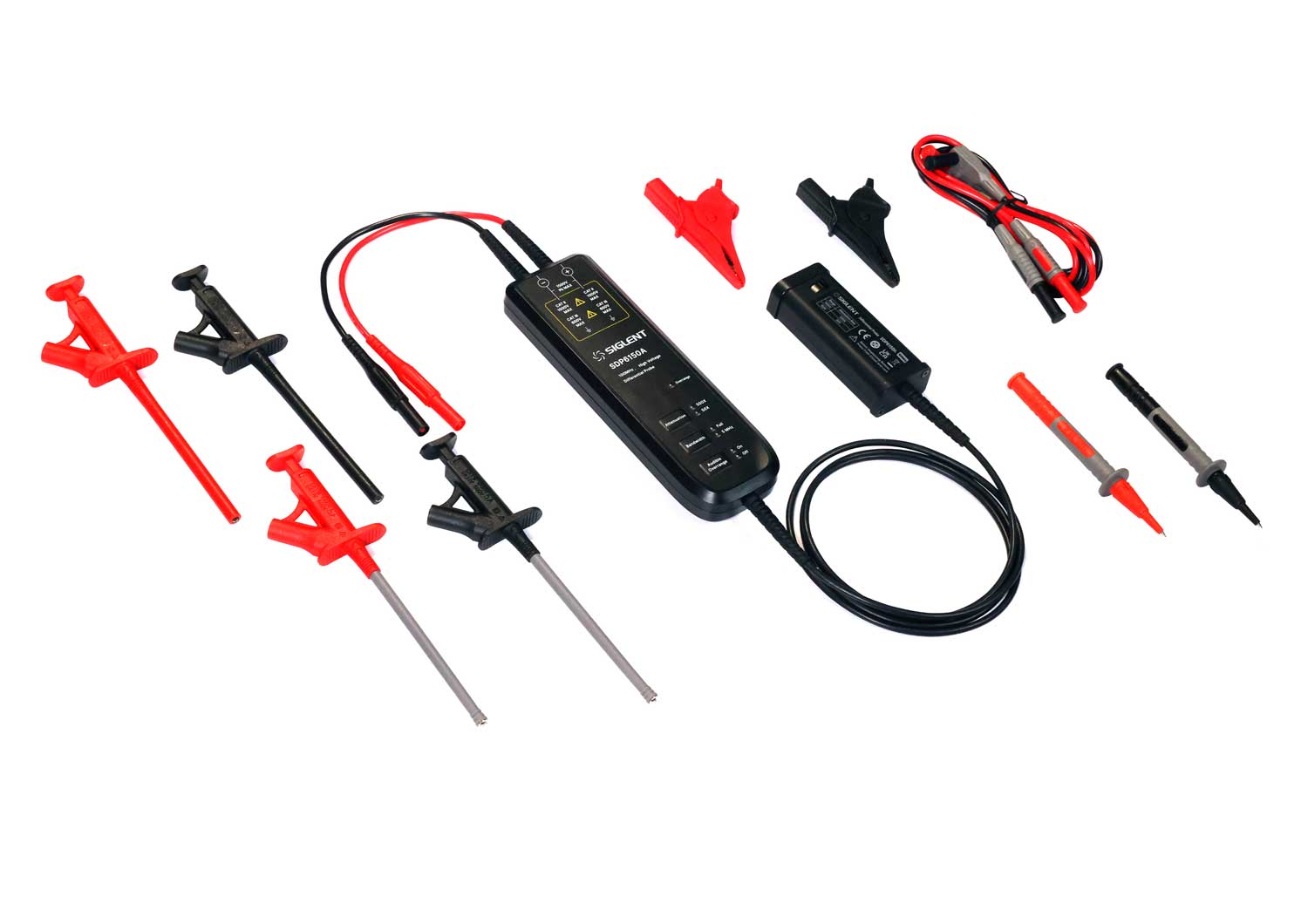

Siglent SDP6150A High Voltage Differential Probe

The SDP6150A High Voltage Differential Probe represents a significant expansion in the high-voltage measurement options available for power electronics testing. These probes are engineered specifically to address the complexities of capturing precise data within high-noise environments, where signal integrity is frequently compromised by electromagnetic interference.

Documentation

Siglent Differential Probe Datasheet DPB6150 / SDP6150 User Manual
Model SDP6150A SDP6150D
Bandwidth (-3 dB) 100 MHz 400 MHz
Rise time ≤3.5 ns ≤1 ns
DC accuracy ±2% ±2%
Attenuation ratio 50X/500X 100X/1000X
Maximum differential test voltage 50X: ±150 V 100X: ±150 V
500X: ±1500 V 1000X: ±1500 V
Maximum differential mode voltage VS frequency curve Refer to Figure 6
Maximum input voltage to earth 1000 V CAT II 600 V CAT III
Input impedance (Refer to Figure 5) Single-ended to ground: 5 MΩ Between inputs: 10 MΩ
Between inputs: 10 MΩ
Input capacitance Single-ended to ground: <4 pF Between inputs: <2 pF
Between inputs: <2 pF
CMRR (Typical) DC: 80 dB DC: 80 dB, 100 kHz: 60 dB, 1 MHz: 40 dB
100 kHz: 60 dB
1 MHz: 40 dB
Noise (Vrms) 50X: <60 mV 100X: <200 mV
500X: <300 mV 1000X: <420 mV
Overrange voltage threshold indicator 50X: ≥150 V 100X: ≥150 V
500X: ≥1500 V 1000X: ≥1500 V
