Siglent SDM3055 DC: 200mV – 1000V, AC: 200mV – 750V, DC: 200Β΅A – 10A, Dual-Display Digital Multimeter

(1 customer review)

£399.00 (Β£478.80 inc VAT)

3 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: SDM3055 Categories: ,

Description

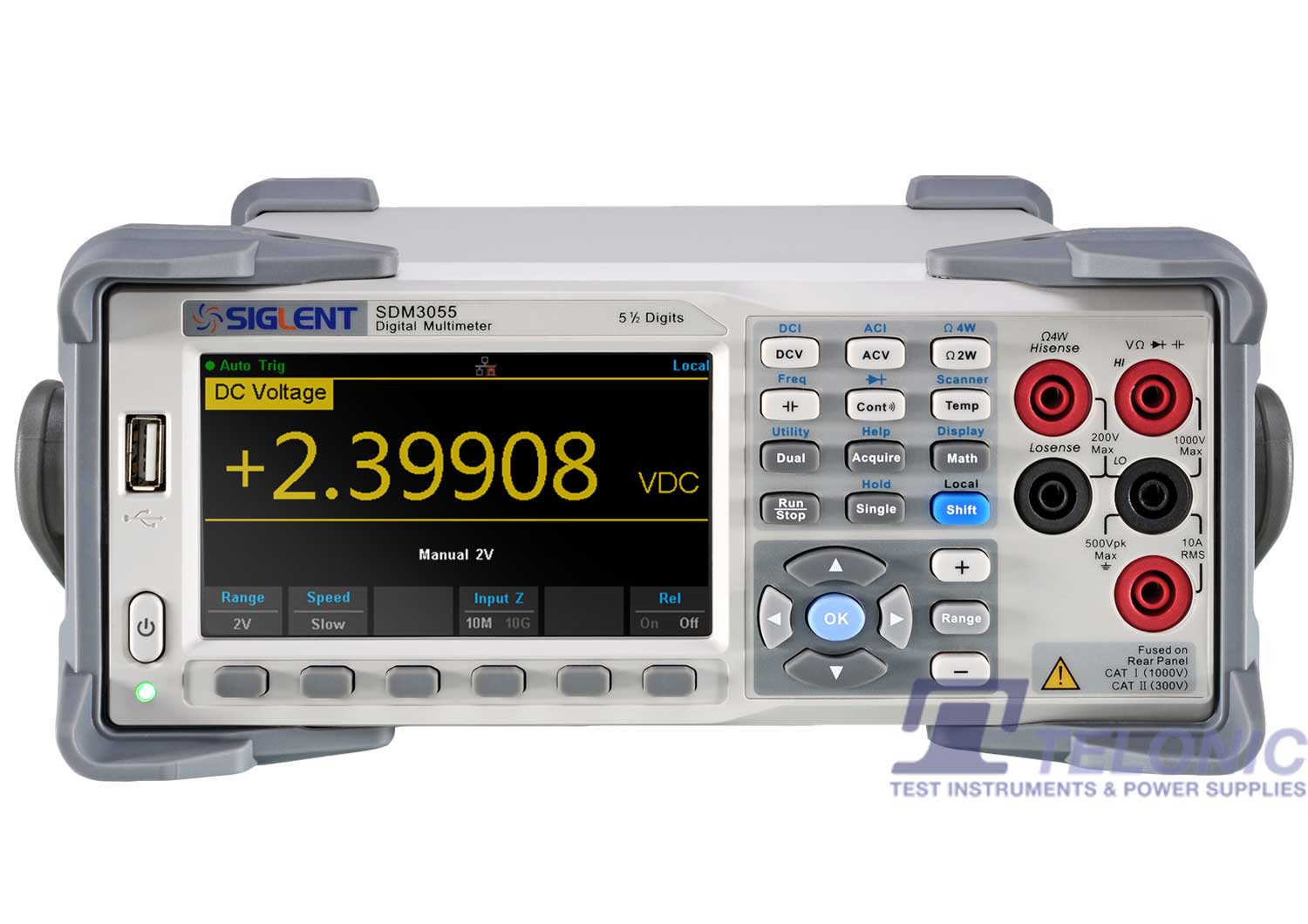

Siglent SDM3055 Digital Multimeter

SDM3055 / SDM3055-SC is a digital multimeter designed with 5.5 digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

  • Real 5.5 digit display (240,000 counts)
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb NAND flash size, mass storage configuration files and data files
  • Built-in cold terminal compensation for thermocouple measurements
  • With easy, convenient and flexible PC software: EasyDDM
  • Standard interface: USB Host, LAN (Optional Accessories USB-GPIB Adapter)
  • Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters

Siglent SDM3000X Digital Multimeter Comparison Table

ModelReading ResolutionDC Voltage Accuracy In A YearDC Voltage Measurement RangeAC Voltage Measurement RangeDC Current Measurement RangeScanner Card
SDM3045X4 1/2 Digit0.01% of reading + 6 counts600 mV – 1000 V600 mV – 750 V600 Β΅A – 10 ANo
SDM30555 1/2 Digit0.015% of reading + 0.003% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 ANo
SDM3055-SC5 1/2 Digit0.015% of reading + 0.003% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 AYes
SDM3065X6 1/2 Digit0.0035% of reading + 0.0006% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 ANo
SDM3065X-SC6 1/2 Digit0.0035% of reading + 0.0006% of range200 mV – 1000 V200 mV – 750 V200 Β΅A – 10 AYes

Product Images

Product Videos

YouTube Video
YouTube Video

Documentation

Datasheet

Siglent SDM3055 Datasheet



User Manual

Siglent SDM3055 User Manual



Quick Start

Siglent SDM3055 Quick Start



Application Notes

Testing Intrinsic Safety Barrier fusing and circuitry using an Electronic Load

Secure products without K-lock slots

Programming Example: List connected VISA compatible resources using PyVISA

Verification of a working remote communications connection using NI – MAX

Open Socket LAN connection using Python

Verification of a LAN connection using Telnet

Testing Open Socket Communications Using PuTTY



DC Characteristics

FunctionRangeTest Current or Load Voltage1 Year
23 Β°CΒ± 5 Β°C		Temperature
coefficient
0 Β°C~ 18 Β°C
28 Β°C~ 50 Β°C
DC Voltage200mV0.015 + 0.0040.0015 + 0.0005
2V0.015 + 0.0030.0015 + 0.0005
20V0.015 + 0.0040.0015 + 0.0005
200V0.015 + 0.0030.0015 + 0.0005
1000V0.015 + 0.0030.0015 + 0.0005
DC Current200 ΞΌA< 8 mV0.055 + 0.0050.003 + 0.001
2mA< 80 mV0.055 + 0.0050.002 + 0.001
20mA< 0.05 V0.095 + 0.0200.001
200mA< 0.5 V0.070 + 0.0080.005 + 0.001
2A< 0.1 V0.170 + 0.0200.013 + 0.001
10A< 0.3 V0.250 + 0.0100.008 + 0.001
Resistance200 Ξ©1mA0.030 + 0.0050.0030 + 0.0006
2KΞ©1mA0.020 + 0.0030.0030 + 0.0005
20KΞ©100 ΞΌA0.020 + 0.0030.0030 + 0.0005
200KΞ©10 ΞΌA0.020 + 0.0100.0030 + 0.0005
2MΞ©1 ΞΌA0.040 + 0.0040.0040 + 0.0005
10MΞ©200nA0.250 + 0.0030.0100 + 0.0005
100MΞ©200 nA || 10 MΞ©1.75 + 0.0040.2000 + 0.0005
Diode Test2.0V1 mA0.05 + 0.010.0050 + 0.0005
4V100 ΞΌA0.05 + 0.010.0050 + 0.0005
Continuity Test2000Ξ©1mA0.05 + 0.010.0050 + 0.0005

AC Characteristics

FunctionRangeFrequency Range1 Year
23 Β°CΒ±5 Β°C		Temperature
coefficient
0 Β°C~ 18 Β°C
28 Β°C~ 50 Β°C
True RMS AC Voltage200mV20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
2V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
20V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
200V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
750V20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
True RMS AC Current20mA20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		0.015 + 0.015
0.015 + 0.006
0.015 + 0.006
200mA20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
2A20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
10A20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		0.015 + 0.005
0.015 + 0.005
0.015 + 0.005

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
