Programming Example: Return Peak Table Data with an SSA3000X Spectrum Analyser

Posted on: August 20th, 2021 by James

The SIGLENT SSA3000X series of spectrum analysers have an on-screen peak detection that can be used to easily show the peak values in a

  • Configure the instrument span, RBW, and amplitude to capture the signals of interest
  • Send “:CALC:MARK:PEAK:TABL ON”
  • Send “:CALC:PEAK:TABL? “ to return the peak table data

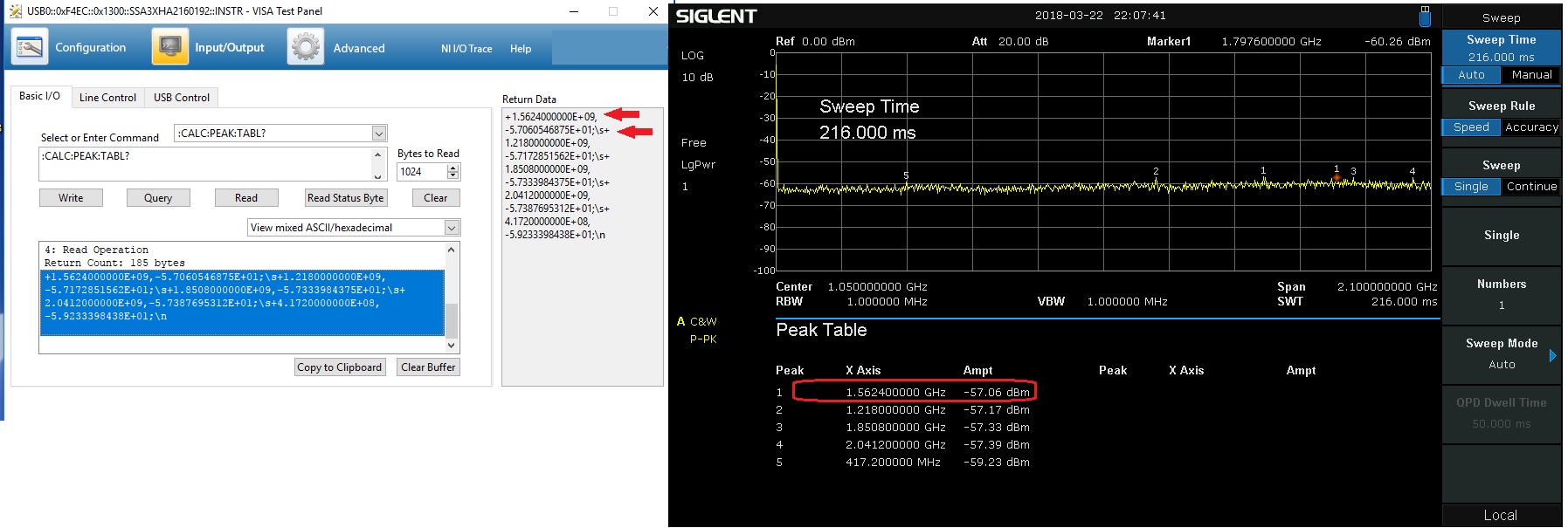

Here, we show the displayed peak table and the data return using a VISA interface:
